90 Degree Bending Insert Type Female Header Connector 2.54 Pitch 3.0AMP

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

90 Degree Bending Insert Type Female Header Connector 2.54 Pitch 3.0AMP

  • 1
  • 2

Brand Name : WCON

Model Number : 2185-2XXZG0CYNT1

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000PCS

Price : negotiaiton

Payment Terms : T/T

Supply Ability : 800000kpcs

Delivery Time : 15~25Day

Packaging Details : Tube

Pitch : 2.54m

purpose : Insert PCB board

Type : Three row bent insert type

Product category : BOARD TO BOARD CONNECTOR

Contact Now

90 degree bending insert type Female Header Connector 2.54Pitch

Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material phosphor Bronze
Contact Plating AU over Ni
Insulator Material PA9T+30％GF UL94V-0

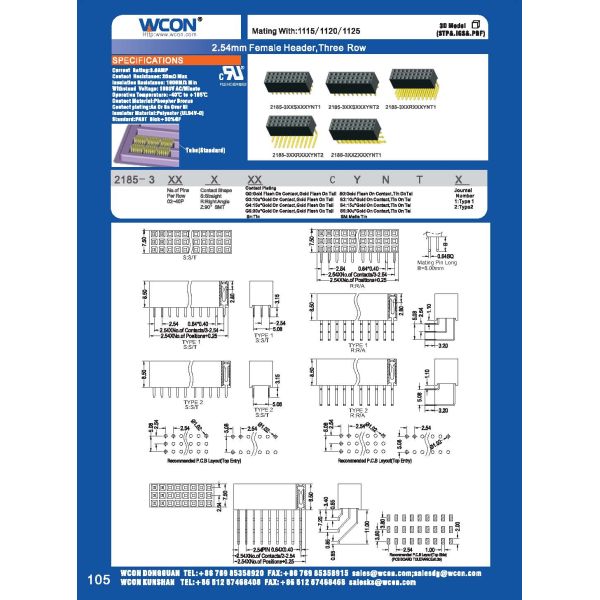

90 Degree Bending Insert Type Female Header Connector 2.54 Pitch 3.0AMP

90 Degree Bending Insert Type Female Header Connector 2.54 Pitch 3.0AMP

90 Degree Bending Insert Type Female Header Connector 2.54 Pitch 3.0AMP2185-3XXRXXCYNT1.pdf
